Configuring VPN on MacOS
VPN Setup for MacOS –
- Visit System Preferences on your device
- Select Network
- On the left menu Click the Plus (+) button

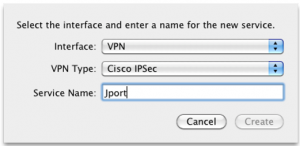

Select the interface and enter a name for the new service.
- Interface: VPN
- VPN Type: Cisco IPSec
- Service Name: Jport
- Select Create

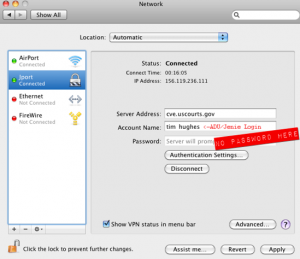

Enter the information per field
- Server Address: cva.uscourts.gov
- Account Name: Jenie Username
- Password: LEAVE BLANK
Make sure “Show VPN status in menu bar” is Selected
Click on Authentication Settings – Input information
- Shared Secret: Contact IT Helpdesk
- Group Name: @CIN (note: case sensitive)
- Click OK
You have successfully added a VPN Connection to your MacOS device.
How to Connect to VPN –
- Click on Wifi Symbol on your device
- Select open network preferences
- Select JPort
- Click Connect
- Input Jenie PW
- Two Factor Authenticate thru Duo Mobile
Once Verified you will receive a notification that the VPN Connection has be successful and Click OK.
